Top Glass Cutting Disc for Angle Grinder: Precision Cutting Solutions

Tired of chipped glass and messy cuts? Your angle grinder is the solution. Shops all around the United States prefer a glass cutting disc for an angle grinder. Pair it with a slower speed to keep the glass from overheating. Adding a bit of water cooling makes the glass cutting process even cleaner with chip-free edges.

Variable speed grinders ultimately turn your technical glass cutting into a safer and smoother process with low heat and spot-on discs. Enjoy faster cutting, minimal dust, and smoother cutting finishes with the right tool set up. Cut anything – glass panels, ceramic tiles, or thin materials like crystal or jade with premium glass disc cutting tools.

The right disc + low speed + consistent cooling = cleaner and professional glass cutting.

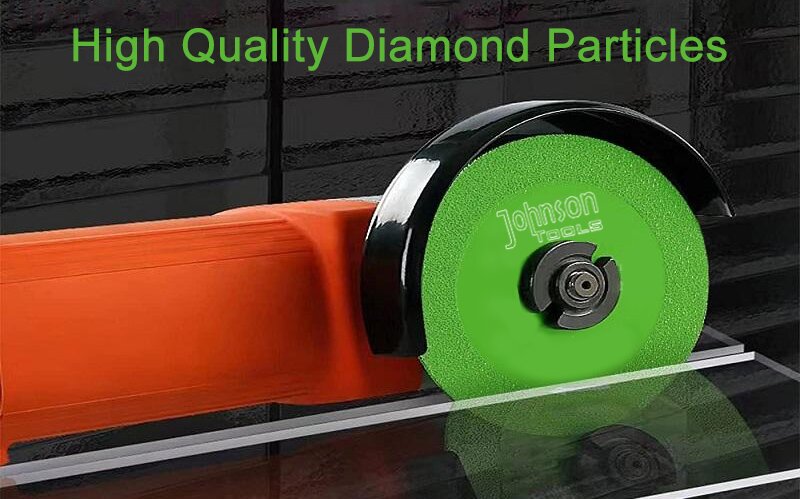

Characteristics of Cutting Discs

Glass shop owners prefer a diamond ultra-thin saw blade for thin and delicate glass smooth cutting. Whether you want to cut wine bottles, jade, crystal, glass, or tiles, these discs can smartly handle clean and stable edges. Enjoy chip and crack-free cutting with minimal dust and no heat.

Infuse diamond high manganese steel matrix with the brazing process to lock the diamonds in place. Manufacturers prefer this technique for better blade service life under continuous workload. Moreover, cutting discs helps you make your glass edges sharper due to the efficient grinding process.

Professional experts who prefer thin saw blade wheels and diamond discs for fast cutting have low stock waste. These discs are highly affordable. Making them an ideal choice for distributors with higher turnover in products without compromising the overall product quality and performance.

Generally, cutting discs for angle grinders have multiple material options according to reliability and performance. These discs are exceptionally cut and ground from porcelain, ceramics, glass, wood, tiles, and even iron or carbide surfaces. Operators can amazingly remodel and perfectly turn their technical projects into exotic beauty.

Manufacturers use high-quality steel and industrial diamond grit for diamond disc manufacturing. Quality materials make these discs wear-resistant and durable that have premium performance at high RPM. Shop owners enjoy safer, efficient, and consistent quality work with these discs.

Types of Cutting Discs and Their Applications

1. Disc Sizes for Different Jobs

Experts manufacture professional angle grinder discs in different diameters. Shops have better access to flexible workloads with common grinder sizes ranging from 3.54 in (90 mm) to 4.53 in (115 mm). Operators use specific disc sizes while working with handheld workstations, compact spaces, and smooth glass shaping and cutting.

2. Cutting Capabilities Across Multiple Materials

Cutting discs for angle grinders can handle a wide range of material thickness and choices. Different discs have different impacts on ceramic, glass, porcelain, or other hard surfaces. Operators use precise glass cutting techniques for tile installers, repair shops, and glass fabricators for mixed material job handling.

3. Types of Cutting Discs

Among the glass discs, construction workers prefer different cutting discs for different tasks, like:

• Use glass cutting discs for chip-free cutting and low heat.
• Ceramic blades help you cut tiles, porcelain, and thin stone sheets.
• Diamond saw blades provide strong versatility. Properly cut, grind, and shape your tiles.

Construction operators must choose the right disc cuts for clean finishes and better productivity.

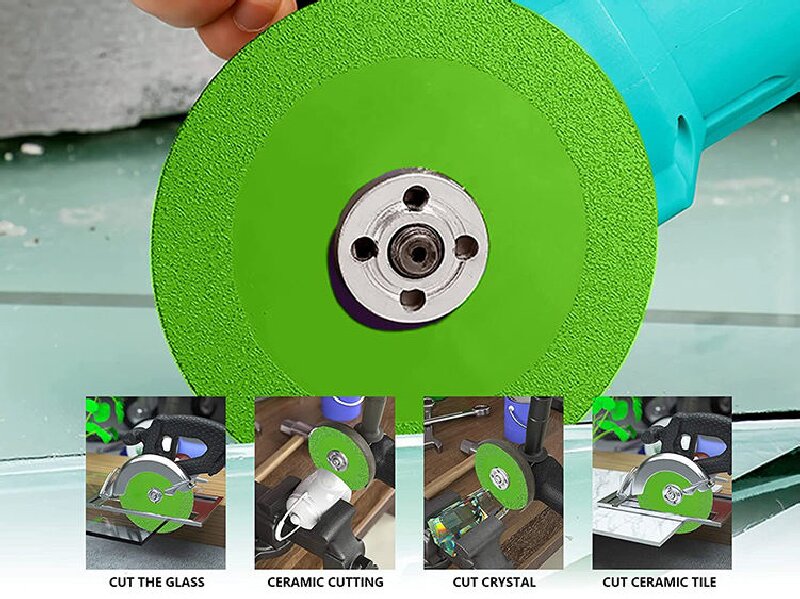

4. Special Cutting Applications

Shop owners use diamond cutting discs for wine bottles, jade, crystal, & decorative materials for precise glass cutting. During disc cuts, operators use a thin film structure to avoid unnecessary resistance and uneven cracks. Light production houses, crafts shops, and studio owners use diamond cutting discs as their ideal one-stop solution.

5. Compatibility With Standard Grinders

4-inch and 5-inch angle grinder models are known as the best disc workshop tools. Access standard grinder stocks with fewer errors and replacements. As a shop owner, you can easily switch between the grinding and cutting tasks without changing the glass cutting machines.

Spec Sheet: What to Look For (Quick Checklist)

Whenever choosing the right glass cutting disc for angle grinder, keep an eye on the glass specifications. All the glass sizing and material details help you in chip-free cutting with smooth and cleaner glass cuts. People enjoy an efficient workflow when comparing the disc checklist.

Rim Type

• Continuous rim
• Fine diamond exposure
• Rated for glass or glass & tile

✔ Grit Options

• #120–#200 → Help you with clean and chip-free cutting
• #80–#100 → Instant stock removal

✔ Kerf / Thickness

• 0.8–1.2 mm for smooth, fine, and thin cuts

✔ Core Quality

• Tensioned steel core
• Silent core is optional for low vibration and low grinding noise

✔ RPM Guidelines

• Run less than the suggested max grinder speed
• Ideal range: 3,000–6,000 RPM with water for wet cutting

Step-by-Step: How to Use a Glass Cutting Disc for an Angle Grinder

How can you professionally use a glass cutting disc for angle grinding? Follow this quick and easy procedure for max control over chip-free cutting and cleaner corners!

Prep & Marking

• Make sure to tape both the cutting sides for no chipping.
• Make lines with chalk/pen for better visibility.
• Put your glass on a flat sacrificial backer for support.

Safety & Setup

• Always wear PPE, including face/eye protection and glass-cut-resistant gloves.
• Set a proper angle grinder scale with a low variable speed for efficient cutting.
• Connect a water bottle/mist spray to keep your site clean with wet cutting.

Scoring Pass

• Use glass cutting discs for shallow grooves.
• Place your blade wheel perpendicular to your cutting surface.
• Slightly put some pressure so there are no mini-cracks.

Progressive Passes

• Gradually deepen the cuts with multiple shallow passes.
• Maintain a proper feed and continuously cool the surrounding surface.
• Proper cleaning helps you avoid overheating issues and smooth, clean cuts.

Break & Support

• Lightly support your cut.
• Never twist your disc inside the glass, or there will be fractures all over the surface.

Edge Finishing

• Align with the corners with diamond hand pads (#200 → #400).
• Use fine diamond wheels for premium precision.
• It helps you smoothen the edges with no micro-chips at all.

Glass Type vs. Disc & Technique

How smooth your glass cut is depends on the right disc choice. Let’s have a look at this table to decide the right diamond disc, grit, and technique for chip-free cutting.

Glass Type Selection Table

Glass Type	Recommended Disc	Grit / Mesh	Technique Notes
General glass cutting	High-frequency induction brazed continuous-edge or segmented saw blade	60–80 mesh	Cost-effective, wide material compatibility. Enjoy stable and smooth cutting
Precision panels (e.g., displays)	Vacuum brazed continuous-edge fine-grain blade	80–120 mesh	Best for micron-level accuracy. It is ideal for thin glass, crystal, and electronics
Thick or high-hardness glass	Segmented coarse-grain vacuum-brazed blade	36–60 mesh	Stronger cutting force. Get better heat dissipation; suitable for quartz/tempered glass
Photovoltaic glass	Ultra-thin substrate (≤1.2 mm) fine-grain vacuum brazed blade	Fine mesh	Requires wet cutting to protect the coating layer fully. Get precise feed control

Why Vacuum Brazing Matters?

In the new brazing process, operators use titanium–chromium active filler metal at higher temperatures to fix diamond particles with the steel core. Vacuum brazing brings countless advantages for professional shop owners:

• Bond strength >1500 MPa for longer service life
• Consistent diamond height for smooth cutting
• Low risk of diamond detachment
• Less dust with quick service
• Ideal for cutting ultra-thin glass (≤0.5 mm) & hard materials

In PV glass production, these improved blades last 40× longer than those with resin wheels. Vacuum blades help you increase the efficiency by 35%.

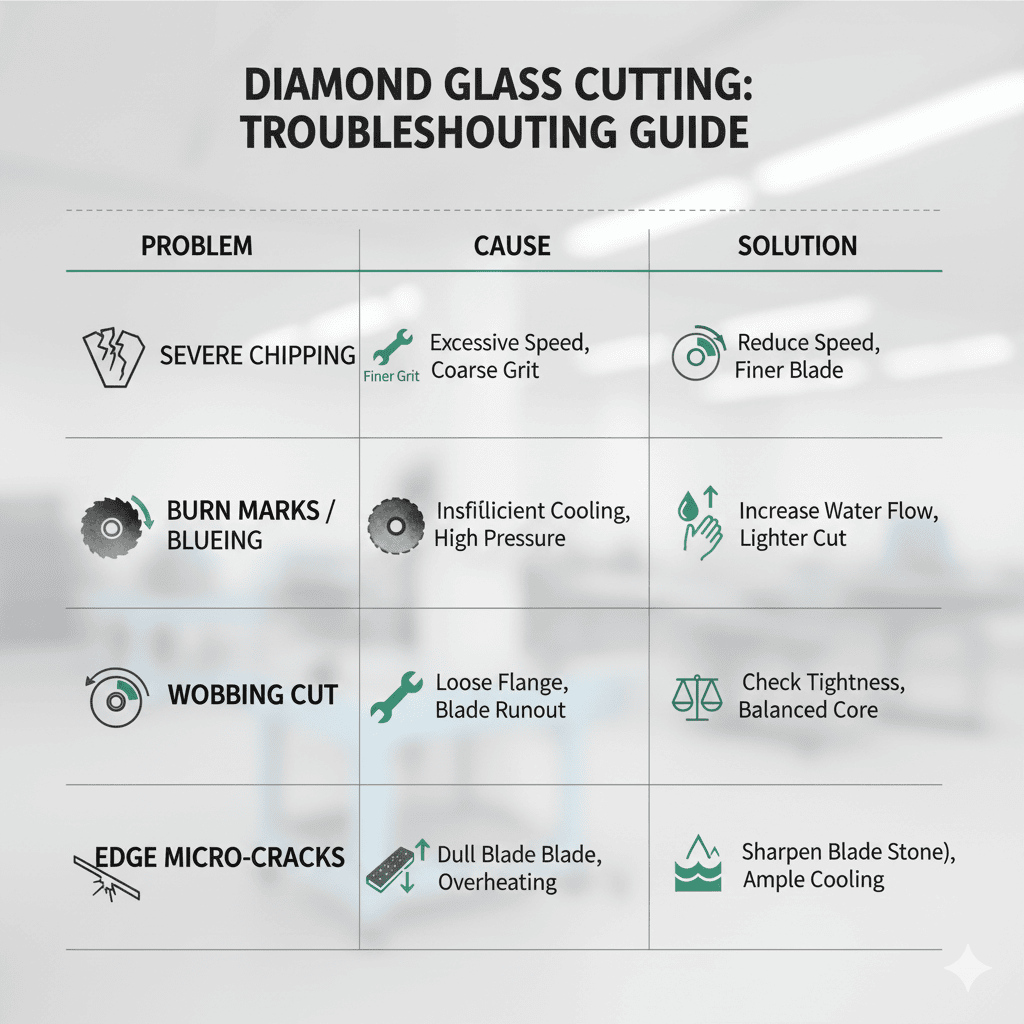

Common Issues & Fixes

Follow this quick troubleshooting guide for the glass cutting disc for an angle grinder.

• Use chipping for fine grits. Get a low round per minute. Add more water to slow down the feed pressure.
• Burn / Discoloration helps you increase the feed cooling. Do not switch to new cutting discs for low pressure.
• Don’t know how to check for the vibration? Use a stiff backer to check your arbor & flange. Always use silent core blades for minimal vibration.
• Seal down all the edges with diamond pads (#200→#400) to avoid micro edge cracks.

FAQs

How to decide the best available diamond disc for cutting glass?

Use fine-grit electroplated continuous rims for special glass cuts.

Can I use a 7-inch diamond blade for my wet tile saw to cut glass?

Yes! But you can use it only if it is glass-labeled. Follow slow feed with light pressure and wet cutting technique.

Can I do dry cutting of the glass myself?

No! Professionals do not recommend this task! Try using ultra-light passes with max cooling breaks.

Why Choose Johnson Tools?

Johnson Tools designs custom glass cutting discs for angle grinders. We help you with:

• Ultra-thin rims for smooth, clean, and chip-free cutting.
• We help you design fine diamonds for smoother cuts.
• Get custom sizes like 4.5″ / 5″ / 7″ with bushings for 20 mm or 22.23 mm arbors.
• Properly balance the steel cores for low vibrations and better service life.
• We provide private-labeled OEM/ODM with contractor pack options.
• Johnson Tools provides custom tools and materials for workshops, distributors, and professional fabrication teams.

Conclusion

Cutting glass right with angle grinders is all about the right disc, cutting speed control, and consistent cooling. Precisely cut your glass items for clean and smooth edges with no dust buildups around you!

Contact us today to order diamond discs for cutting glass and wet diamond saw blades for professional, chip-free glass cuts every time.
