Why Core Drilling Matters
Core drilling process is one of the techniques that defines precision in modern construction and engineering. Whether you’re cutting through reinforced concrete, stone, or asphalt, accuracy matters. You can’t afford cracks, uneven edges, or wasted time.
That’s where core drilling comes in. It gives you smooth, clean holes with minimal disruption. In this post, you’ll learn what is core drilling, how it works, what core drilling machines and bits you need, and how JohnsonTools can help you get the job done right.
What Is Core Drilling?
Core drilling is a method that removes a cylinder sample from a solid material, commonly concrete, asphalt, masonry, or stone. The process generally uses a rotating core bit embedded with diamond segments, which is capable of grinding through tough surfaces to create clean, round openings. The ability to extract a suitable and clean core is one of the key benefits.

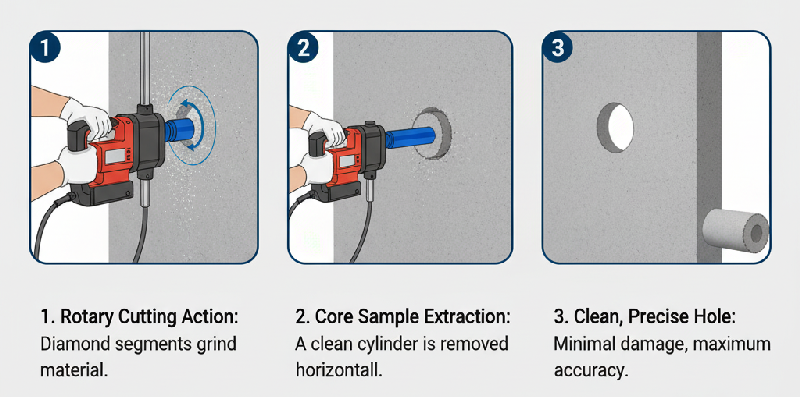

How Core Drilling Works
The core drill’s hollow bit rotates at high speed while applying steady pressure. As it cuts, a cylindrical “core” of material is captured inside the bit and can be removed intact. Unlike impact drilling or jackhammering, this method doesn’t damage the structure around the hole.
You get exact dimensions without compromising integrity. For reinforced concrete, wet drilling is often preferred because water or drilling fluid helps cool the bit and control dust.
Key Applications
Core drilling is used across multiple industries for:
- Plumbing and electrical installations – creating openings for pipes and conduits
- HVAC ductwork – cutting access points for ventilation and system installations
- Concrete testing – extracting samples for strength and quality analysis
- Stone fabrication – cutting precise sink or faucet holes in granite countertops
- Asphalt coring – obtaining road samples for quality testing
What Is a Core Bit?
To understand how the process works, you need to know what is a core bit. A core bit is a cylindrical drill bit with a hollow center. It’s the part that does the cutting, creating a circular path and leaving the solid core intact and maintaining structural integrity. The shaft connects the bit to the motor.
The edges of a high-quality core bit are embedded with industrial diamond segments to make the three main parts. These segments cut through tough materials like concrete, brick, or granite with precision. You can choose from many diameters, from 12mm up to 450mm or more, depending on your project’s needs.
Core Bit Types
There are two main categories of core bits. Wet and dry.
- Wet core bits utilize water during drilling to reduce heat and dust. Sprinkler systems are installed to ensure water is available as the drilling progresses. They’re ideal for hard materials such as reinforced concrete or stone but not metal.
- Dry core bits are used to penetrate softer materials like brick and block, where water isn’t required.
When you invest in diamond-tipped bits, you get longer life, faster drilling, and smoother finishes. Wet bits are often laser-welded for strength and endurance, while dry bits are vacuum-brazed for better performance in light materials.
Why Diamond-Tipped Core Bits?
Diamond is the hardest material on Earth, making it ideal for cutting concrete, stone, rock, asphalt and other materials. JohnsonTools’ diamond core bits are built for durability and precision, reducing downtime and ensuring cleaner holes on every project. The higher the diamond quality and concentration, the smoother and faster your drill cuts.
Core Drilling Tools: What Equipment Is Used?
Successful core drilling requires more than just the bit. It depends on the right combination of tools, setup, and operator control. Choosing the right equipment not only improves performance and accuracy but also helps extend tool life and ensure on-site safety.
1. Handheld Core Drills
Compact, lightweight, and portable, handheld core drills are ideal for smaller jobs such as wall penetrations, soft coring, or tile installations. They’re commonly used when flexibility and mobility are needed, especially in tight or elevated job sites.
Despite their smaller size, they deliver impressive torque and precision when paired with high-quality diamond bits. JohnsonTools’ handheld-compatible bits ensure efficient cutting with minimal vibration, allowing contractors to work faster and with cleaner results on-site. The process can be used for ice or wood, too.
2. Rig-Mounted Core Drills
For heavy-duty or large-diameter applications, rig-mounted core drills provide the stability and power needed for deep and hard coring in concrete slabs, bridge decks, or vertical walls. These machines are anchored securely or vacuum-mounted to ensure straight, vibration-free drilling.
The result is greater accuracy and reduced bit wear, even when cutting through reinforced concrete. JohnsonTools offers a variety of wet core bits and accessories compatible with professional rig-mounted setups, helping crews maximize precision and productivity in demanding environments.
3. Power Systems
Core drills can be powered by electric, hydraulic, or pneumatic systems, each suited to specific site conditions. Electric core drills are the most versatile, offering easy setup and smooth speed control for a wide range of materials. Hydraulic systems, on the other hand, are built for continuous, high-power operations in industrial or large-scale construction projects.
Pneumatic models provide safe operation in wet or hazardous environments where electrical equipment might be restricted, where the air pushes through system. No matter the system, pairing it with JohnsonTools’ premium core bits ensures consistent, high-speed drilling performance.
4. Water Supply Systems
Water plays a critical role in wet drilling, serving as a coolant, lubricant, and dust suppressant. A well-maintained water supply system keeps the diamond segments cool, reduces friction, and extends the life of both the bit and the motor.
By minimizing dust and debris, it also creates a safer, cleaner working environment. JohnsonTools recommends using reliable water-fed core bits designed for optimal cooling efficiency, especially when drilling into dense materials such as reinforced concrete or granite.
5. Safety Accessories
No professional coring setup is complete without proper safety measures. Anchors and vacuum pumps secure the rig in place, preventing movement during drilling. Operators should always use appropriate personal protective equipment (PPE), including eye protection, gloves, ear defenders, and dust masks, to maintain a safe working environment.
At JohnsonTools, we supply a complete range of wet and dry core bits, extension rods, adapters, and anchoring solutions to ensure every project is completed efficiently and safely from start to finish. At JohnsonTools, we supply a complete range of wet and dry core bits, extension rods, and adapters everything you need to tackle professional coring projects safely and effectively.
What Is a Corer Drill (Cord Drilling)?
A core drill, or corer drill, is a specialized drill designed to remove a cylindrical sample of material, which is called the core. The process is known as core drilling or coring. It uses a hollow, cylindrical drill bit, typically tipped with industrial diamonds or carbide, to cut an annular (ring-shaped) hole.
The material left inside the hollow center of the bit is the intact core sample. In some geology and mining applications, a core barrel can consist of nested barrels, including an outer barrel and an inner barrel to collect intact cores from unconsolidated material.

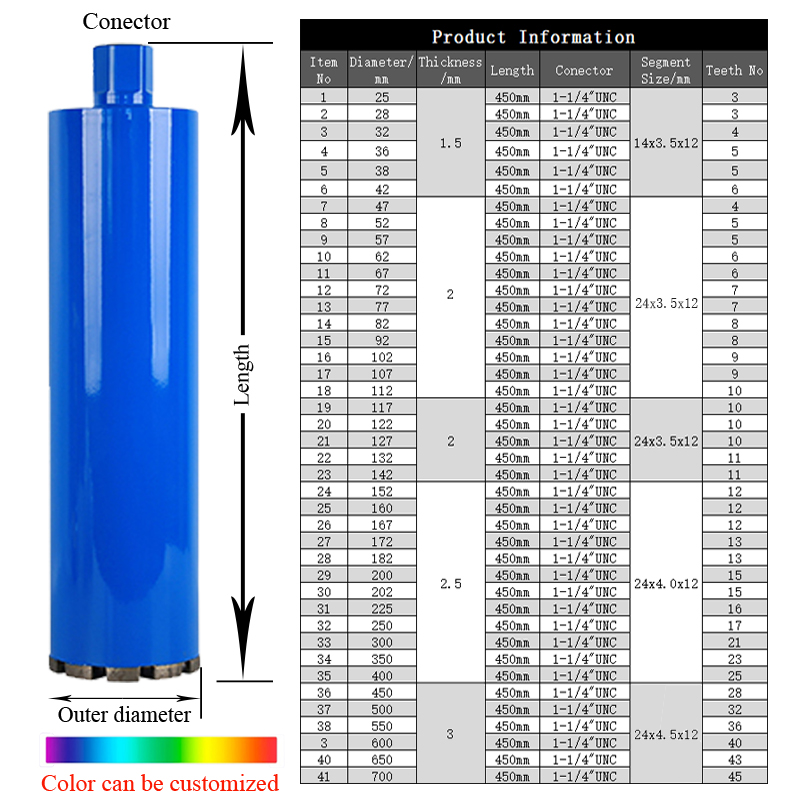

Key Considerations When Choosing a Core Drill Bit
Selecting the right core bit can significantly impact efficiency, hole quality, and tool lifespan. Here are a few factors to consider:
| Feature | Why It Matters | Example (JohnsonTools Product) |
| Diameter | Must match the required hole size | 2″, 4″, or 6″ Diamond Core Bit |
| Segment Type | Wet vs. dry, laser-welded vs. sintered affects speed and durability | Laser-Welded Wet Core Bit |
| Material Cut | Match the bit to the surface type (concrete, asphalt, granite, brick) | Wet Diamond Bit for Reinforced Concrete |
| Machine Type | Handheld vs. mounted; torque and speed vary | Rig-Mounted Wet Drill Setup |
By pairing the correct bit with the right drill type, you ensure smoother cuts and longer tool life, saving time and money on every job.

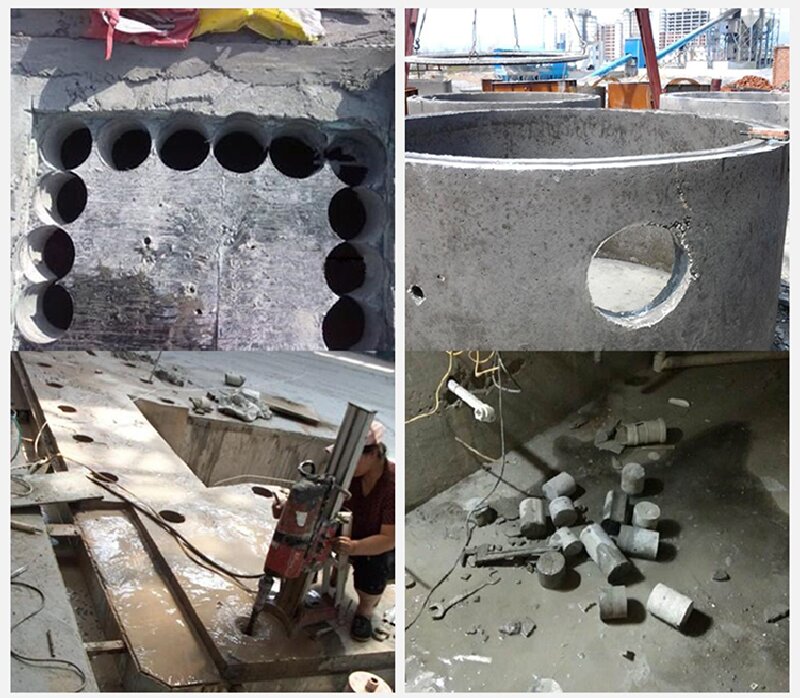

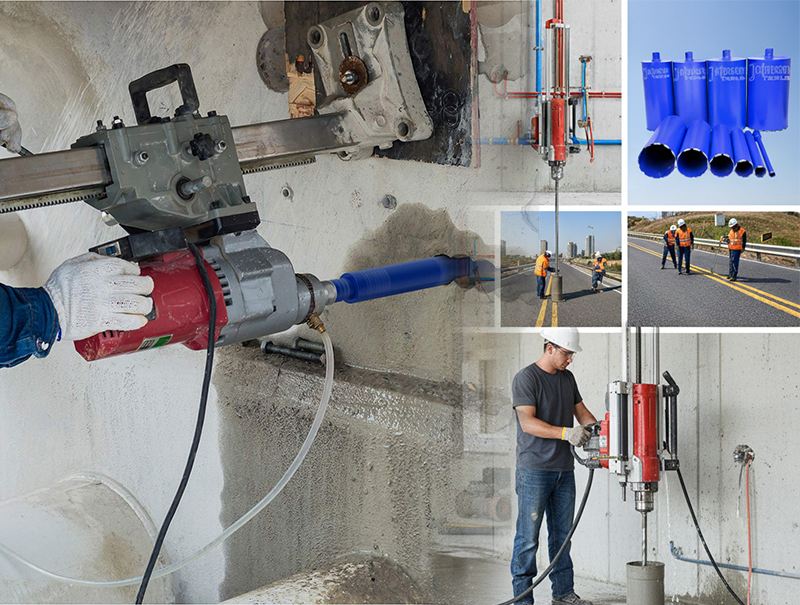

Industries That Use Core Drilling Machines in Their Job Sites
Core drilling is an essential technique across numerous industries with many applications.

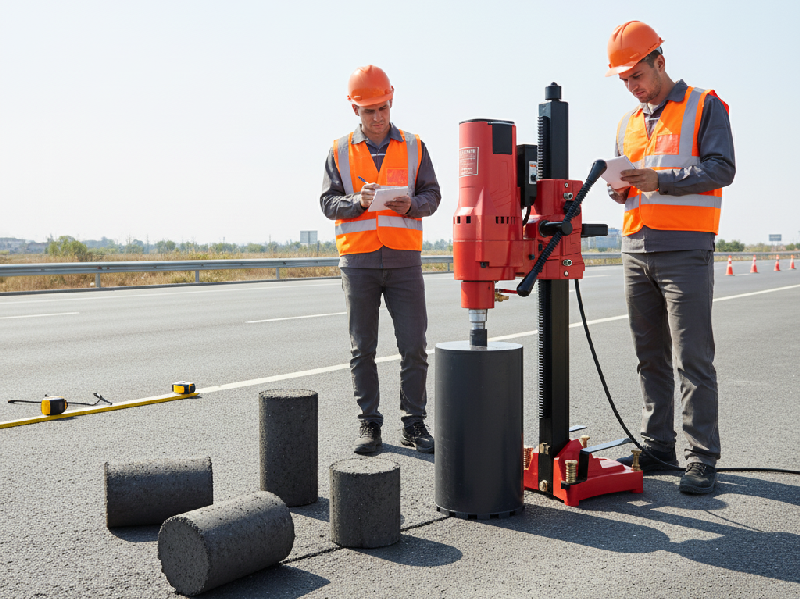

Road Construction
In roadwork, core drilling is the main method used to collect asphalt and subbase samples. This helps check things like compaction, density and layer thickness. Engineers use the samples to make sure the mix design is working well and to find issues like rutting and ravelling.
Wet coring helps reduce dust and keeps samples intact, while rig-mounted setups keep the drilling straight for accurate results. JohnsonTools’ wet core bits are designed to cut through tough asphalt quickly and last longer, cutting down on downtime between tests.
Civil Engineering
Civil engineers use core drilling in many ways, from pre-construction surveys to forensic assessments. It helps evaluate concrete strength, locate and verify rebar, and inspect foundations, columns, and slabs without needing to demolish large areas.
Core drilling also allows for the installation of anchors and systems where tight tolerances are needed. By choosing the right bit for the hardness, reinforcement, and depth of the material, teams can make cleaner holes, reduce spalling, and ensure safer operations.
JohnsonTools offers wet coring tools made for reinforced concrete, helping companies meet quality and schedule requirements. Collecting reliable, contamination-free data is a major benefit of core drilling. The process should always start with a site assessment.

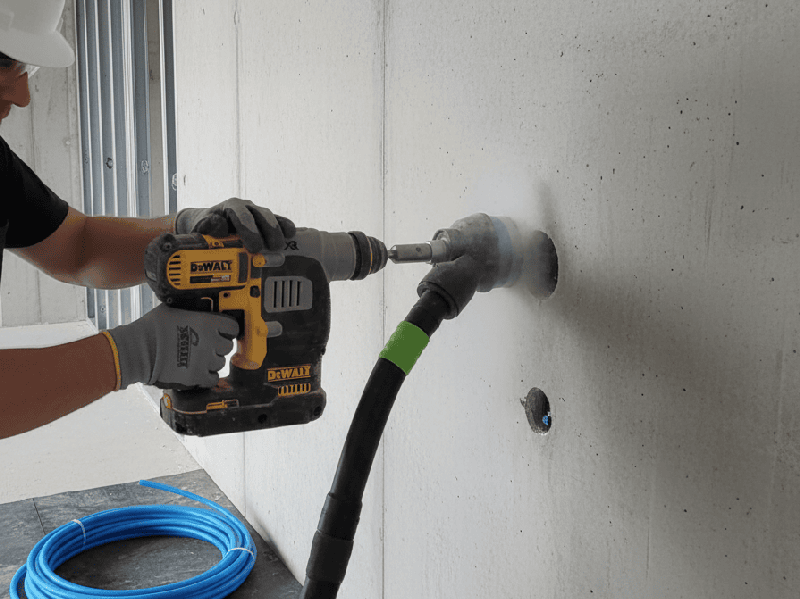

Plumbing & Electrical
Contractors use core drilling to make precise openings for water lines, drain stacks, conduit, and cables in concrete or block walls. Diamond core drilling is better than impact tools because it reduces cracking, protects finishes, and keeps holes in the correct location.
This is especially important in small, busy areas or finished spaces. Whether using handheld drills for smaller holes or larger systems for bigger sleeves, JohnsonTools’ dry and wet diamond bits help workers finish faster, cleaner, and with fewer callbacks.
Stone Processing
You need precise cuts for your work. Fabricators and installers use core drilling often. They create accurate sink cutouts. Faucet cutouts also require this method. You also use it for materials like granite. Marble and engineered stone work well. Furthermore, core drilling sets anchors.
You use anchors for facade panels. Stair treads also need anchors. Diamond segments cut hard materials. These segments deliver smooth edges. Smooth edges reduce polishing time. This also lowers waste. Less chipping means less wasted material. JohnsonTools’ wet core bits help your shop.
These bits focus on stone work. You must use the correct coolant and at the right capacity. Also, use the right feed rates. This practice helps you get professional finishes. Consistent hole sizes are important. They matter for high-volume work.
Your shop demands consistent results. These bits deliver great results for clients. You will see fewer costly errors. This ensures your projects run smoothly. High-quality tools save you time and money. Invest in better tools today. You want to achieve a flawless finish. Trust JohnsonTools for your next job.
Frequently Asked Questions (FAQ)

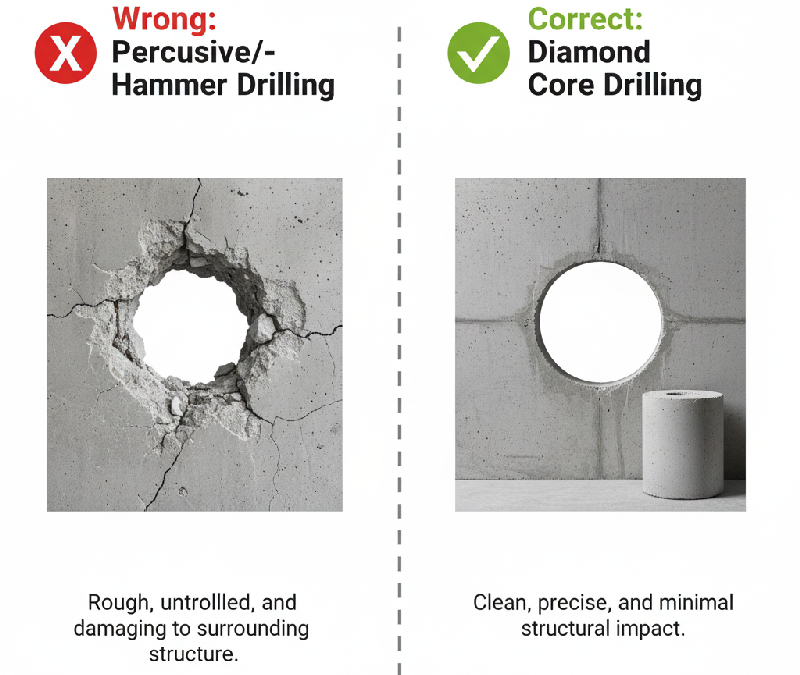

What’s the difference between core drilling and rotary hammer drilling?
Rotary hammer drilling uses impact force to break material, while core drilling cuts smoothly with a diamond bit. Core drilling produces cleaner holes and minimizes surface damage.
Can core drilling go through rebar?
Yes, diamond-tipped core bits from JohnsonTools can drill through rebar in reinforced concrete. Wet drilling is recommended for heat management.
What size core bit should I use for a 4-inch pipe?
Typically, you’ll need a bit around 4.5″ to 5″ in diameter to allow clearance for the pipe.
Do I need water for core drilling, especially soft coring or hard coring?
For hard materials like reinforced concrete or granite, yes. Wet drilling improves performance, extends bit life, and reduces dust.
Invest in the Right Core Drilling Tools
Now that you understand what is core drilling, you can see how vital the right equipment is. This process gives you precision, speed, and efficiency. But the results depend entirely on the quality of your tools.
When you choose JohnsonTools, you’re choosing reliability and innovation. Our core drilling tools are designed for professionals who expect performance and consistency on every project without any risks. From diamond core bits to complete drilling systems, every product is engineered for durability and precision.
Our laser-welded wet core bits handle heavy-duty tasks, while our dry bits offer flexibility for masonry work. Each tool is built with years of expertise and tested for the highest standards in performance. So, when your next project demands precision and speed, trust JohnsonTools.
Explore our full range of core drill bits today or request a quote from our team. You’ll get expert guidance, long-lasting tools, and confidence in every cut.
