Segmented vs. Continuous Diamond Blades: Which One Should You Use?

Introduction

When you’re trying to cut something really tough, like concrete, tile, or stone, you can’t use just any blade. You need a very specific blade for a specific purpose. In this guide, you’ll learn the difference between segmented blades, continuous rim blades, and turbo diamond blades. Let’s explore!

What is a Diamond Blade Used For?

Diamond blades are used to cut through hard materials that regular blades can’t handle. They’re common in the construction industry, especially when working with thick or delicate surfaces.

Common Applications

A diamond blade is great for cutting things like:

• Concrete, including both reinforced and plain slabs
• Tile, such as ceramic, porcelain, and marble
• Stone, including granite, natural stone, and masonry
• Even some metal types, using specially designed diamond blades


So, what makes these blades so effective? It’s not because they “cut” like a knife. Instead, they grind through the material using strong friction.

Want to learn more? Visit Johnson Tools now!

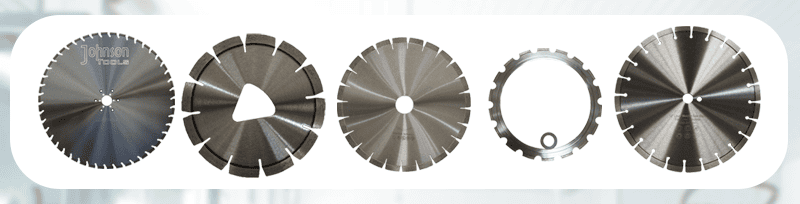

Segmented vs. Continuous Rim vs. Turbo Diamond Blades

Not all diamond blades are made the same. Some are fast but rough, some are slow but smooth, and others try to find a balance between. To make sure you choose the right diamond blade for your cutting needs, it’s important to understand how each type works and what kind of material it’s best for.

The three main types are segmented blades, continuous rim blades, and turbo diamond blades, and each one has its own job to do.

Segmented Diamond Blades

Segmented diamond blades are known for being strong and fast. If you’re cutting thick or rough stuff like concrete, brick, asphalt, or stone, this is the blade you’ll want.

The edge of the blade is divided into little chunks, called segments, and in between those segments are spaces that help the blade stay cool. These gaps let air flow through and push out dust, so the blade doesn’t get too hot or slow down.

The best part? Segmented blades cut quickly and are super tough. They’re used a lot in the construction industry because they work really well on tough surfaces. They last a long time and help you cut faster through big jobs.

But they don’t make the prettiest cuts. The edges can be rough, and if you use them on something like ceramic tiles, they might cause chipping. So, they’re not the best choice if you’re looking for a smooth, high-quality finish.

If you’re looking for top-performing segmented blades, here are some of the best ones out there:

The DEWALT XP4 Segmented Diamond Blade is great for dry concrete cuts. The Bosch Premium Segmented Blade works well for brick and masonry. And the Makita 7-Inch Segmented Diamond Blade is perfect for tough, heavy-duty concrete jobs.

Continuous Rim Diamond Blades

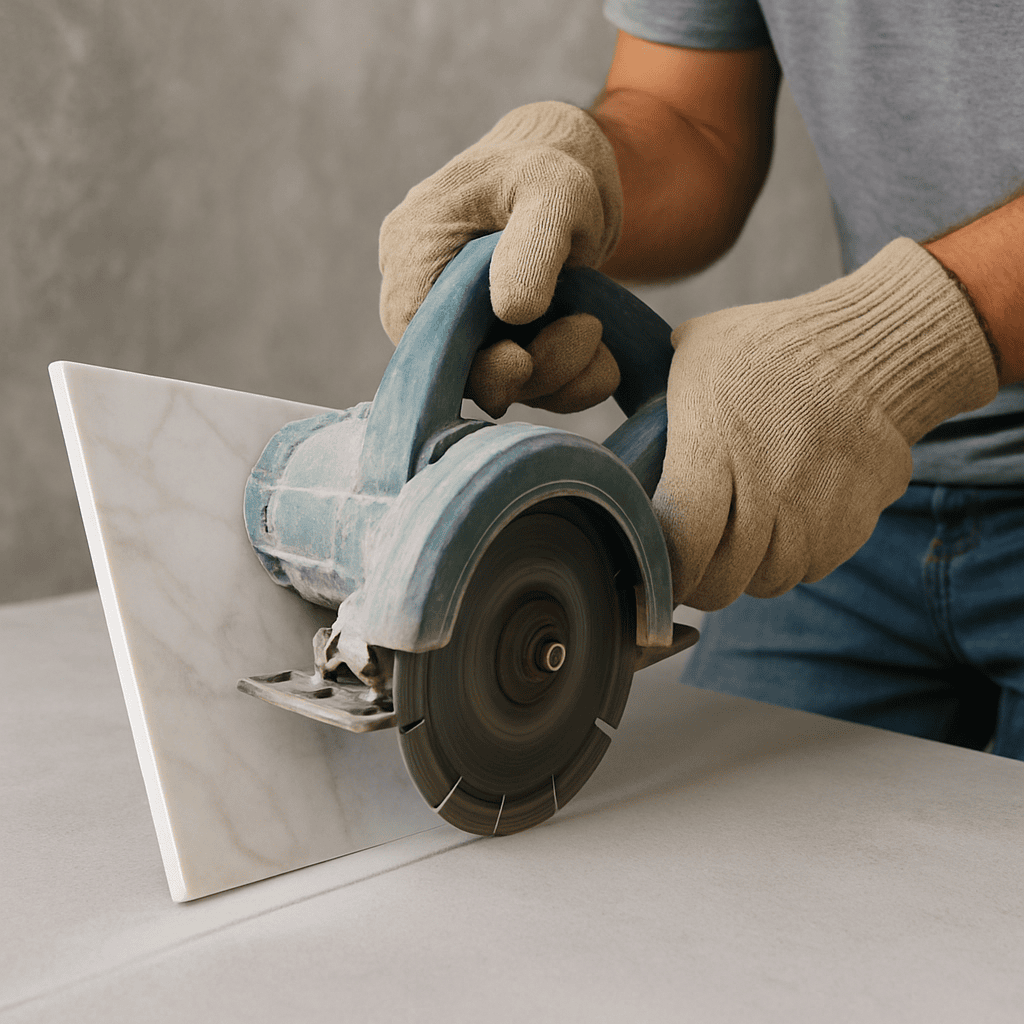

Now, if you’re working with delicate materials like ceramic, porcelain, glass, or marble, you’ll need something gentler. That’s where continuous rim diamond blades come in.

Some of the best options for this type include:

The DEWALT XP4 Continuous Rim Blade for smooth tile cuts, the Bosch 10-Inch Continuous Rim Blade for porcelain and ceramic, and the QEP 7-Inch Diamond Blade, which is a great pick for DIY tile work at home.

Turbo Rim Diamond Blades

And finally, we have the middle ground: turbo diamond blades. These blades are designed to give you a little of both worlds—speed and smoothness.

They have a slightly rough or serrated edge, which looks like small waves around the rim. This helps improve both the cutting speed and the finish, making it a good option for many different types of material.

Some great picks for turbo rim blades are the Bosch 7-Inch Turbo Rim Blade, which works well on stone, granite, and masonry. The Makita 4.5-Inch Turbo Rim Blade is ideal for handheld grinders. And the Husqvarna 12-Inch Turbo Diamond Blade is perfect for cutting lots of different materials in one job.

Explore the best products and insights at Johnson Tools now!

Segmented vs. Continuous Rim vs. Turbo: Which One Should You Use?

When it comes time to actually choose between segmented, continuous rim, or turbo diamond blades, it helps to understand how each one performs in real-world cutting. Some are great for speed, others are better for smooth edges, and some are a balance of both.

The right diamond blade depends on what material you’re working with and what kind of results you need—fast cuts, minimal chipping, or a clean, polished finish.

Segmented Diamond Blade

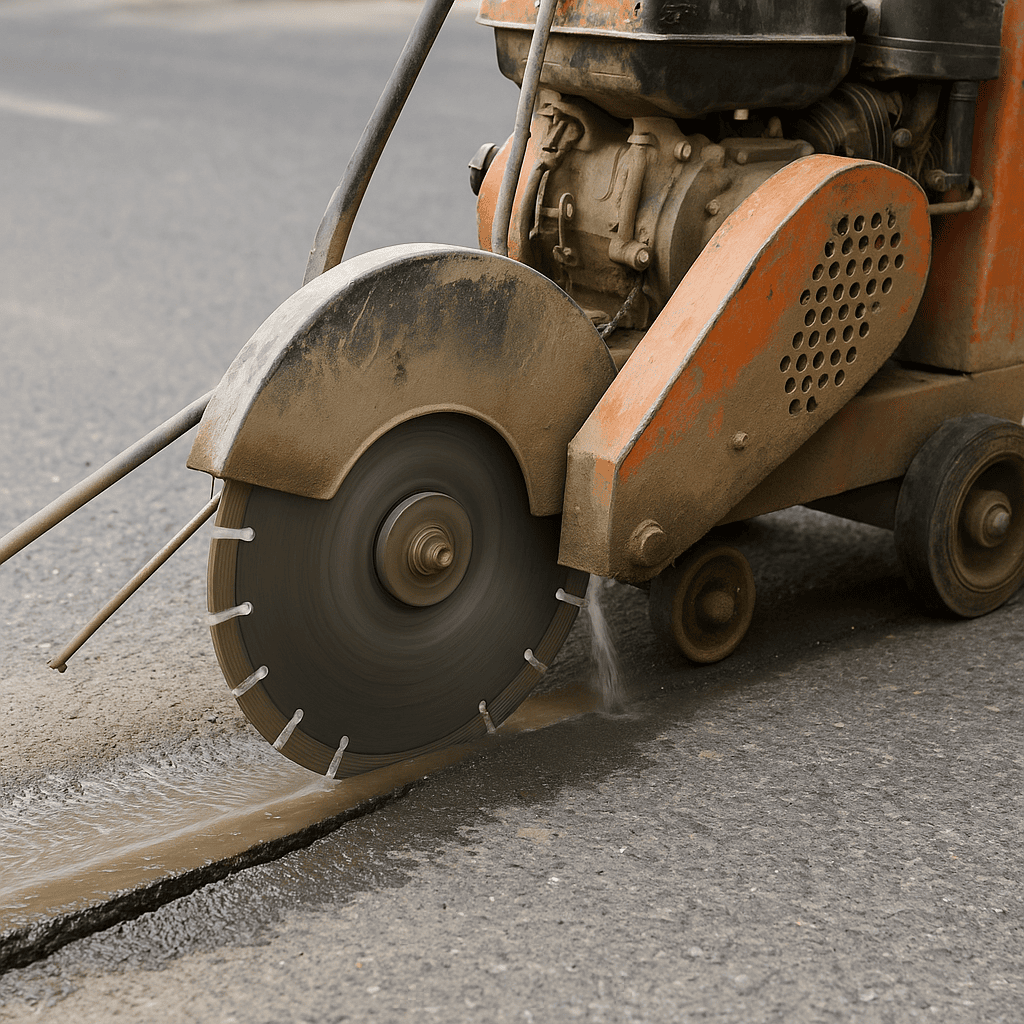

A segmented diamond blade is the fastest of all three. It’s made for tough jobs like cutting concrete, brick, and masonry. Thanks to the slots between the segments, the blade gets better air flow, which keeps it cool and helps it last longer.

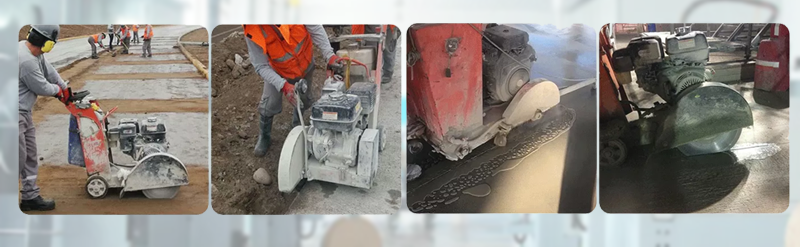

You’ll often see these blades used in the construction industry, especially for outdoor work or demolition jobs. But while the cutting speed is high, the finish is not always pretty. These blades can leave behind rough edges and are not the best for smooth or shiny materials like ceramic tiles, where chipping can be a problem.

Continuous Rim Diamond Blade

On the opposite side, we have the continuous rim diamond blade, which is the slowest but also the smoothest. It works best on tile, ceramic, and porcelain, and gives a high-quality finish with clean cuts and almost no chipping.

This blade doesn’t have gaps—it has a smooth rim all the way around. That design means the blade stays in contact with the material, creating heat quickly. That’s why this blade always needs wet cutting to keep it cool. Even though it cuts slower, it’s perfect when you want perfect edges on delicate surfaces.

Turbo Rim Diamond Blade

In between the two, we have the turbo rim diamond blade. It’s designed with a slightly serrated edge that boosts cutting speed, while still providing smoother results than a segmented blade. These blades are made for granite, stone, and general-purpose cutting.

They’re great when you’re working with different materials and want something versatile. A turbo blade works with both air and water for cooling, so it’s flexible depending on your setup. It doesn’t cut quite as fast as a segmented blade, and not quite as smoothly as a continuous rim, but it gives you a solid mix of both.

Best Choice Summary

So, how do you decide which blade to use?

Use a segmented blade if you need to cut faster through rough, thick materials like concrete or stone and don’t mind rough edges. Use a continuous rim blade if you’re working with tile or ceramic and need a chip-free, high-quality finish.

And if you’re working with a mix of surfaces—or you want speed and smoothness in one tool—go with a turbo diamond blade.

Making the right choice means your cutting will be quicker, cleaner, and safer. You’ll protect your material, your tools, and save yourself time.

Whether you’re doing DIY home projects or professional work, choosing the right rim blade based on speed, cooling method, and the finish you need will always help you get better results.

Common Diamond Blade Cutting Problems & Solutions

Even when using a high-quality diamond blade, problems can show up while cutting. But the good news is—most of these issues have easy fixes. Let’s take a closer look at the most common problems and how to solve them.

Blade Overheating?

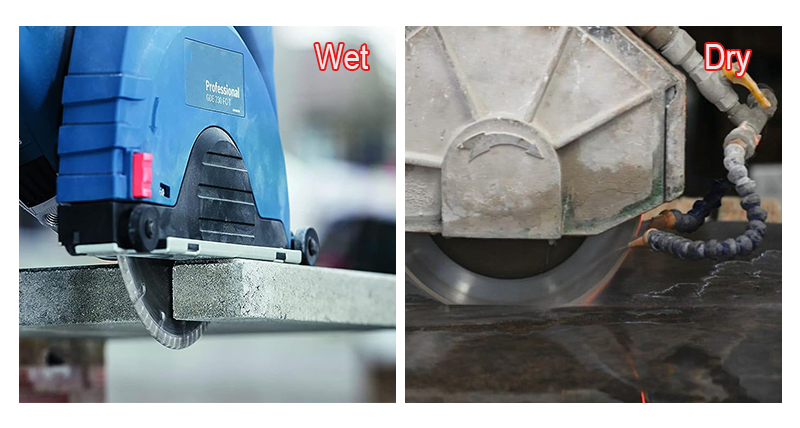

If your blade feels too hot or starts smoking, it means it’s overheating. This usually happens during dry cutting on hard materials like concrete or stone, especially when there’s no water to help. The solution is simple: use wet cutting.

The water keeps the blade cool, controls heat, and helps remove dust. If water isn’t an option, pause between cuts and let the blade rest. This improves air flow and helps avoid damage caused by overheating.

Blade Cutting Too Slow?

Sometimes, a diamond blade seems to be moving too slowly through the material. This usually means the right blade isn’t being used.

For example, using a segmented diamond blade to cut ceramic tiles will be frustratingly slow. To fix this, check your blade type and match it to the cutting material.

Continuous rim blades are better for tiles, while segmented blades are best for concrete and brick. The closer the match, the better your cutting speed will be.

Blade Chipping Tile Edges?

If the blade is causing chips on the edge of your tile, it’s a sign that the blade isn’t smooth enough. Segmented or turbo blades can be too rough for delicate materials.

In this case, switch to a continuous rim diamond blade and use wet cutting. This gives a minimal chipping edge and a high-quality finish, especially on ceramic, porcelain, and glass.

Blade Dulling Too Quickly?

If your diamond blade loses its sharpness too soon, it may need a refresh. Run it through a dressing stone. This helps expose fresh diamonds on the surface, making the blade feel like new. It helps you cut faster, extends blade life, and improves results, especially when cutting granite, asphalt, or stone.

Solving these small issues helps your blade last longer, gives better performance, and protects your tools and materials from damage.

Conclusion: Choosing the Right Diamond Blade for Your Project

Choosing the right diamond blade doesn’t have to be confusing. If you’ve made it this far, you now understand what makes each blade type special—and why it matters for your project.

Now that you know the difference between segmented, continuous rim, and turbo diamond blades, you’re ready to make an informed decision based on your exact cutting needs.
