Introduction: When you’re tackling tough concrete cutting jobs, having the right laser-welded saw blade for the task makes all the difference. Johnson Tools – a trusted manufacturer of diamond blades – offers specialized solutions for every scenario, from roadwork to demolition. In this guide, we’ll explore six types of blades (loop cutting, ring saw, Soff-Cut early entry, precast concrete, wall saw, and floor saw blades) and how each one can help B2B contractors and construction professionals cut faster, safer, and more precisely. We’ll also highlight what makes Johnson Tools’ blades stand out in quality and performance. Let’s dive in!
Comparison of Diamond Blade Types
To get started, here’s a quick comparison of the six blade types and their key features:
| Blade Type | Key Features (Design) | Typical Sizes (Diameter) | Common Uses |
|---|---|---|---|
| Loop Cutting Blade | Early-entry cutting of “green” concrete (within 2–72 hours of pour) – e.g., fresh slabs on roads, runways, floors to prevent cracking | 300–450 mm (12″–18″) | Cutting sensor loops in roads (traffic detectors), widening pavement joints, micro-trenching cables |
| Ring Saw Blade | Ring-shaped blade (no center arbor); wide U-slots for debris removal | ~350 mm (14″) outer diameter (driven by inner roller) | Deep cuts in concrete walls/floors (up to ~260 mm depth with handheld saw); creating door/window openings; rescue cutting |
| Soff-Cut Blade | Flat top segments, narrow U-slot core, special triangular arbor hole | 150–355 mm (6″–14″) | Early-entry cutting of “green” concrete (within 2–72 hours of pour) – e.g. fresh slabs on roads, runways, floors to prevent cracking |
| Precast Blade | Standard segmented rim (silent “sandwich” cores available for noise reduction) | 600–1300 mm (24″–51″)+ (custom larger sizes) | Cutting prestressed precast concrete hollow-core slabs, beams, panels (usually 12–24h after casting) in factory production |
| Wall Saw Blade | Large diameter, “single-U” gullet segments (~5 mm thick) for cooling | 600–1800 mm (24″–72″) | Track-mounted wall saws cutting vertical concrete structures (walls, bridges, foundations) – precise demolition, creating openings |
| Floor Saw Blade | Robust segmented rim (often with undercut protection for asphalt) | 300–1200 mm (12″–48″)+ | Walk-behind floor saw blade (road saw) cutting pavement or slabs – expansion joints, highway and runway repair, asphalt & concrete cutting |
Now, let’s look at each blade type in detail and see how Johnson Tools positions each one for your cutting needs.
Loop Cutting Blades
Loop cutting blades are designed for cutting narrow grooves in pavement, especially for traffic sensor loops.
They feature extra-thick segments (6–20mm wide) that create a wide kerf. Many have 45° chamfered edges, leaving smooth, chip-free slots.
These blades usually come in 12”–18” diameters to fit standard walk-behind saws. They’re built to withstand abrasive materials like concrete and asphalt. For asphalt, some include carbide undercut protection to protect the steel core.
Contractors use loop blades to cut grooves at intersections for induction wires, to widen joints, or for micro-trenching. Johnson Tools supplies loop cutting blades in 300–450mm sizes, with 10mm segment height, and widths from 6mm to 20mm.
Ring Saw Blades
A ring saw blade is unique because it has no center arbor. Instead, it’s a hollow ring driven by a roller on a special saw.
This design lets a 14” ring saw blade cut to depths of 10–12” (260mm), compared to only ~5” with a conventional blade.
Johnson Tools’ ring saw blades are laser-welded with wide U-gullets for cooling and debris removal. Segments are about 10mm high and 4mm thick, optimized for reinforced concrete.
These blades are perfect for making door openings, window cuts, and square penetrations without overcutting. They’re also popular in rescue work, where firefighters need to cut fast through collapsed structures.

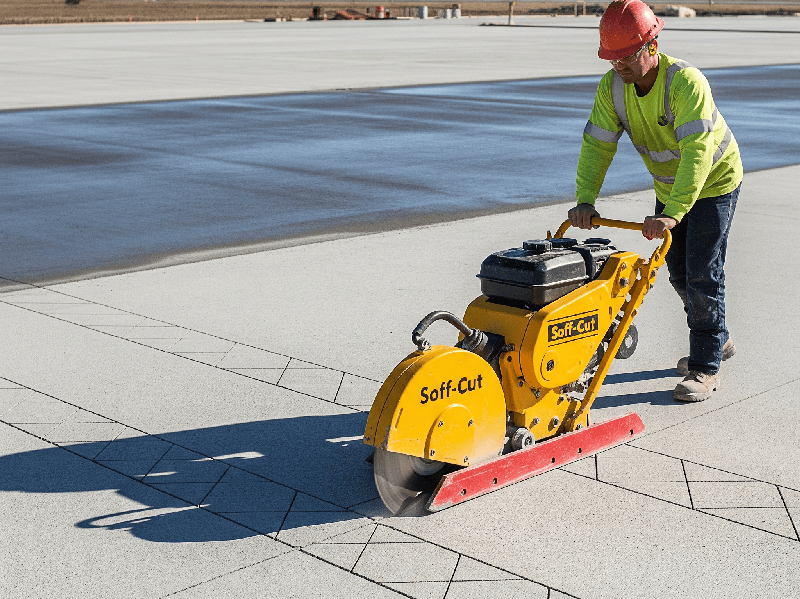

Soff-Cut Blades (Early Entry)
Soff-Cut blades are made for early-entry cutting of green concrete. Cutting joints within hours of pouring helps prevent random cracking.
These blades have a triangular or trapezoidal arbor hole to fit Soff-Cut saws. They feature flat segments and narrow U-slot cores.
Common sizes include 6”, 8”, 10”, 12”, 13.5”, and 14”.
Johnson Tools’ Soff-Cut blades are laser-welded, with segment heights of 10–12mm. They’re tough enough for abrasive, uncured concrete. Contractors use them for airport runways, warehouse floors, and roads to stay on schedule and control cracks.
Precast Concrete Blades
Precast blades are used in plants to cut prestressed concrete elements like hollow-core slabs and beams. Cutting is usually done 8–24 hours after casting.
Johnson Tools makes precast concrete blades in 600–1200mm diameters, with custom options up to 1600mm. Segments are designed to balance cutting speed and long life, even with pre-tensioned wire strands.
To reduce factory noise, we also offer silent-core designs with a copper layer to dampen vibration. These blades are compatible with major precast machines and deliver straight, reliable cuts batch after batch.
Wall Saw Blades
For heavy-duty wall cutting, nothing beats a wall saw blade. These blades range from 600mm to 1800mm in diameter and mount on track-guided saws.
Johnson Tools’ wall saw blades feature wide single-U gullets for cooling. Segments are about 4.8–5mm thick and laser-welded for safety. Each joint is tested to withstand high RPM and heavy load.
Contractors use these blades to cut doorways, windows, bridge sections, and reinforced walls. Johnson Tools can also provide custom arbor sizes and pin holes to fit different saw models.
Floor Saw Blades
Floor saw blades (also called road saw or slab saw blades) are the workhorses of pavement cutting. They cover everything from highways to airport runways.
Johnson Tools manufactures floor blades from 12” to 60”. Our steel cores are hardened to resist warping, and segments are laser-welded for strength.
We tailor the bond for concrete, asphalt, or mixed jobs. For asphalt, blades may include undercut protection teeth.
Our clients rely on Johnson floor saw blades for expansion joints, slab cutting, and road repair. With smooth, stable cutting and long life, they’ve become the trusted choice for contractors worldwide.
Why Johnson Tools?
By now, you’ve seen that no matter the application – loop cutting, ring sawing, early-entry, precast plant work, wall sawing, or floor sawing – Johnson Tools has a specialized blade ready to make your job easier. But beyond just offering the variety, what truly sets our blades apart? It comes down to quality and trust. We use advanced manufacturing (fully automated laser welding, precise heat treatment) and we perform rigorous testing on each blade (for example, weld strength tests exceed industry standards by 20–30%). This means when you put a Johnson blade on your saw, you can trust it to perform safely under tough conditions. Our engineers formulate segment bonds based on decades of concrete cutting experience, balancing sharpness and longevity so you get optimal results – faster cuts and better blade life. As a contractor or distributor, you’ll appreciate the consistency batch after batch.
We also pride ourselves on customer support. Need a custom diameter or unusual arbor hole? We’ve got you. Not sure which blade suits a new job? Our team is here to advise so you get the perfect match. At Johnson Tools, we view our B2B customers as partners – your success with our products is our success.
Conclusion & Next Steps: Investing in the right diamond blades can boost your productivity and profitability on the job. Whether you’re sawing a highway loop or slicing open a concrete wall, using a blade purpose-built for that task will save you time, reduce wear on your equipment, and give you a cleaner cut. Johnson Tools is here to equip you with those purpose-built solutions. From laser-welded saw blades for everyday cutting to custom orders for special projects, we’re ready to help you tackle any challenge in concrete or asphalt cutting. Explore our full range on our homepage and feel free to contact our team with questions or quotes. We’re a friendly bunch and happy to share our expertise. Here’s to cutting it right the first time – with Johnson Tools blades that are a cut above the rest!
