Early Entry Blade Product Selection Guide

Early Entry Diamond Blade Product Selection Guide for Green Concrete

In professional concrete paving, selecting the right early entry diamond blade is essential for creating clean control joints before random shrinkage cracking begins.

Unlike standard concrete saw blades designed for fully cured slabs, early entry concrete saw blades are engineered specifically for cutting green concrete during the first stage of curing. When matched correctly to the concrete, aggregate hardness, saw model, and cutting conditions, they help contractors create straight, controlled joints with reduced edge raveling and minimal surface damage.

Early-entry cutting is commonly performed within the first few hours after finishing, once the slab can support the saw and operator without excessive surface marking but before shrinkage stresses cause uncontrolled cracking. The exact cutting window depends on factors such as:

• Concrete mix design
• Aggregate hardness
• Ambient temperature
• Humidity
• Slab thickness
• Finishing conditions

For this reason, choosing the correct green concrete saw blade is just as important as choosing the right cutting time.

Professional early-entry blade systems may include:

• 6 inch early entry blades
• 8 inch early entry blades
• 10 inch early entry blades
• 12 inch early entry blades
• 13.5 inch early entry blades
• 14 inch early entry blades
• Triangular arbor diamond blades
• Early entry blades with skid plates
• Soff-Cut compatible replacement blades
• Different bond specifications for hard, medium, or soft aggregate

The primary purpose of an early entry saw blade is to create a planned control joint or contraction joint before internal shrinkage stresses produce random surface cracks.

Because fresh concrete is softer and more abrasive than cured concrete, early-entry blades require a different bond, segment design, and cutting system from conventional concrete diamond blades.

A correctly selected blade should provide:

• Fast cutting in green concrete
• Reduced joint-edge raveling
• Stable cutting depth
• Controlled segment wear
• Good compatibility with early-entry saw systems
• Clean and consistent control joints

This product selection guide explains how to choose the right early entry diamond blade for green concrete based on blade size, aggregate hardness, bond specification, arbor type, skid plate, and saw compatibility.

We will also compare early entry blades vs standard green concrete blades, explain how to select blades for different aggregate conditions, and cover common specifications for Soff-Cut 150, Soff-Cut 2000, Soff-Cut 4000, and other professional early-entry saw systems.

Concrete Stage	Time Post-Finishing	Recommended Tooling	Objective
Green State	0 – 2 Hours	Early Entry Concrete Saw Blades	Prevent random cracking (Soff-Cutting)
Initial Set	4 – 12 Hours	Green Concrete Saw Blades	Control joint depth in abrasive aggregate
Fully Cured	24+ Hours	Standard Concrete Saw Blades	Structural or decorative cutting

---

Key Features of High-Performance Early Entry Concrete Saw Blades

Unlike standard diamond saw blades for cured concrete, professional early entry concrete saw blades are specifically designed for cutting highly abrasive green concrete during the early curing stage.

Fresh concrete contains uncured cement paste, moisture, and abrasive sand, which can cause rapid segment wear if the blade bond and segment design are not properly matched to the application.

At Johnson Tools, our early entry diamond blades for green concrete are designed with specialized arbor, segment, and cooling features to improve cutting stability, joint quality, and blade life.

Triangular Arbor for Early-Entry Saw Compatibility

Many professional green concrete saw blades use a specialized triangular arbor designed for early-entry cutting systems.

This configuration is commonly used with machines such as:

• Soff-Cut 150
• Soff-Cut 2000
• Soff-Cut 4000
• Other compatible early-entry concrete saw systems

A correctly matched triangular arbor diamond blade helps maintain proper blade positioning and stable operation during control-joint cutting.

Relevant product keywords include:

• triangular arbor diamond blade
• Soff-Cut replacement blade
• early entry blade for Soff-Cut saw
• green concrete blade with triangular arbor
• Soff-Cut 150 blade
• Soff-Cut 2000 blade
• Soff-Cut 4000 blade

Before ordering, always confirm the saw model, blade diameter, arbor configuration, and required cutting depth.

Laser-Welded Segments for Green Concrete Cutting

For demanding professional applications, laser-welded early entry blades provide a strong connection between the diamond segments and steel core.

This is especially important because green concrete cutting can generate:

• High torque
• Abrasive slurry and debris
• Rapid segment wear
• Repeated dry cutting loads

Laser welding helps improve segment retention under demanding operating conditions.

For contractors and distributors, common product terms include:

• laser welded early entry blade
• laser welded green concrete blade
• early entry diamond saw blade
• green concrete control joint blade

However, welding quality is only one part of blade performance. Diamond concentration, bond hardness, segment height, steel core quality, and machine compatibility also influence cutting speed and blade life.

Narrow U-Slot Design for Debris Removal and Cooling

A narrow U-slot early entry blade is designed to improve airflow and help remove abrasive concrete particles from the cutting zone.

This is especially useful during dry early-entry cutting, where efficient debris clearance and heat management are important.

The U-slot design can help:

• Improve dust and debris evacuation
• Reduce heat buildup
• Maintain more stable cutting
• Limit excessive steel-core temperature
• Improve segment cooling during dry cutting

Relevant keywords include:

• U-slot green concrete blade
• early entry blade for dry cutting
• green concrete saw blade with U-slot
• dry cutting early entry diamond blade

Skid Plate Compatibility for Cleaner Control Joints

A professional early entry blade with skid plate is commonly used to reduce edge raveling while cutting fresh concrete.

The skid plate supports the concrete surface near the blade and helps keep the joint edges cleaner during early-entry cutting.

This is particularly important when the concrete is still relatively soft.

Common keywords include:

• early entry blade with skid plate
• Soff-Cut blade with skid plate
• anti-ravel skid plate
• green concrete blade with skid plate
• replacement skid plate for early entry saw

Material-Specific Bond for Green Concrete

Because green concrete is highly abrasive, the blade bond should be selected according to the aggregate and concrete condition.

For example:

• Hard aggregate may require a relatively softer bond.
• Soft or highly abrasive aggregate may require a harder bond to reduce premature segment wear.

Choosing the correct bond helps balance:

• Cutting speed
• Segment wear
• Blade life
• Joint quality

This is why professional early entry concrete saw blades are often available in different bond specifications for varying aggregate hardness and jobsite conditions.

Step 1: Understand Why Early-Entry Cutting Matters

Once concrete starts to dry, it also begins to shrink and build internal stress. If you don’t relieve that stress with planned joints, it’ll crack unpredictably.

Early-entry cutting gives you a short window (typically 1–4 hours after finishing) to guide that stress with precise, shallow cuts. These cuts become control joints, keeping the slab intact and improving durability.

Using early-entry blades instead of waiting a day for traditional cutting means:

• Cleaner, straighter cuts
• Less chance of random cracks
• No need to return to the jobsite later

---

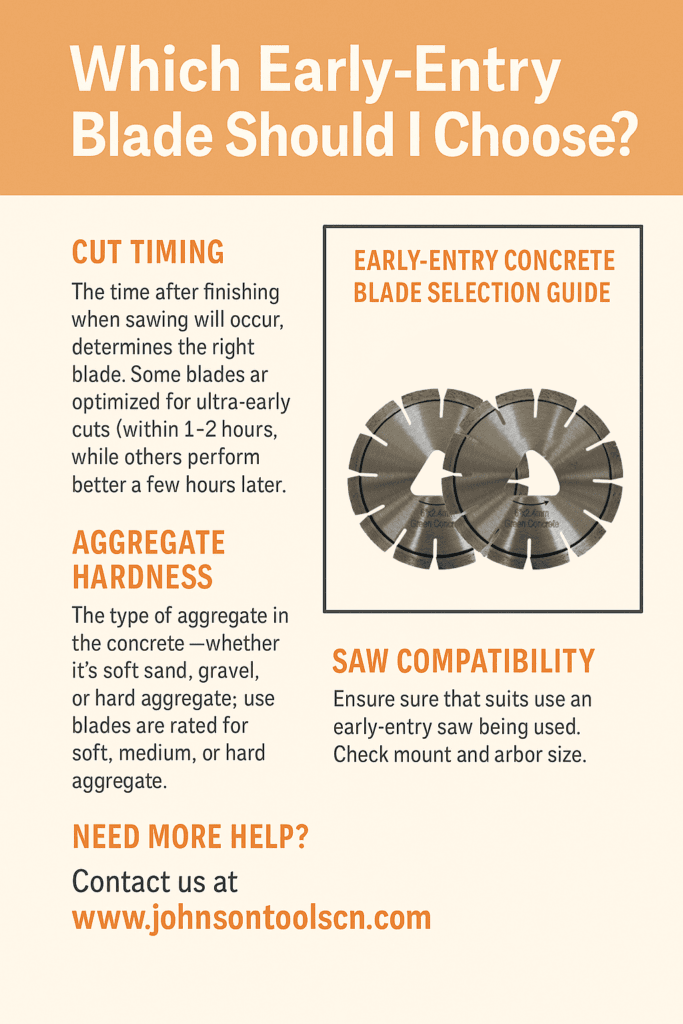

Step 2: Choose the Right Early-Entry Blade

Picking the wrong blade can lead to poor performance, excessive wear, or damage to the slab. Here’s how to match the blade to the job:

• Timing: Know when you’ll cut after pouring. Some blades are best for ultra-early cuts; others work better a bit later.
• Aggregate Hardness: Identify the type of stone in your mix—soft sand, medium gravel, or hard rock—and choose a blade designed for that material.
• Saw Fit: Make sure your blade fits your early-entry saw’s arbor size and rotation speed.

Need help? Our Johnson Tools contact page can connect you with an expert to walk you through blade matching.

---

Step 3: Use It Right

Once you’ve selected your blade, use the correct saw and follow these simple practices:

• Cut within the green zone (1–4 hours after finishing)
• Keep the blade cool and clean
• Don’t force the saw—let the blade do the work

Want a tool that helps with selection? Our blade guide at Johnson Tools includes recommendations based on region, mix, and saw brand.

---

Step 4: Know the Payoff

Using early-entry blades saves money in the long run by:

• Reducing blade replacement
• Cutting down on callbacks and patch repairs
• Helping you stay on schedule and avoid delays

That’s why so many contractors use them for everything from small patios to high-volume commercial pours.

---

Final Thoughts

Early-entry cutting is one of the smartest ways to get clean joints and reliable results. With the right blade, a compatible saw, and proper timing, you can protect your slab from costly damage—right from the start.

Need help selecting your next blade? Visit Johnson Tools or talk to our team to get expert advice and product options tailored to your project.

Expert FAQ: Maximizing Efficiency with Early Entry Blades

Q1: Why is the 0–2 hour window so critical for Early entry concrete saw blades?

A: This is the period when the concrete has enough strength to support the weight of the saw but hasn’t yet developed enough internal stress to crack. Using Green concrete saw blades during this window allows you to “dictate” where the concrete will crack, ensuring a professional, clean look.

Q2: Can I use standard diamond saw blades for green concrete?

A: We do not recommend it. Standard blades often have a bond that is too soft or too hard for green concrete, leading to “raveling” (frayed edges). Dedicated Early entry concrete saw blades are specifically formulated to slice through abrasive green aggregate without damaging the joint edges.

Q3: What is the benefit of a laser-welded Green concrete saw blade?

A: Laser welding is significantly stronger than traditional brazing. When cutting expansion joints, the blade faces intense heat and friction. A laser welded diamond saw blade provides maximum durability and safety for the operator, especially during long-distance industrial flooring projects.

---

Recommended Product: Johnson Tools 6″-14″ Early Entry Diamond Blades

Achieve a crack-free finish with our professional-grade Early entry concrete saw blades. Specifically designed for early dry cutting of expansion joints, these blades are the best solution for high-volume contractors.

Product Features & Specifications:

• Optimal Timing: Best for cutting 0–2 hours after finishing to eliminate random cracking risks.
• Machine Compatibility: Includes a special triangular arbor for a secure, vibration-free fit on professional early-entry saws.
• Superior Durability: Laser welded segments for industrial-strength performance and safety.
• Clean Cutting: Engineered as premium Green concrete saw blades that prevent raveling and ensure sharp, clean joint lines.

Technical Details:

• Blade Diameters: 6″, 8″, 10″, 12″, 13.5″, 14″.
• Segment Height: 10mm / 12mm for an extended cutting lifespan.
• Segment Thickness: 2.4mm to 3.2mm (varies by diameter).
• Slot Type: Narrow U-slot for optimized cooling.
• Quality Grade: Professional Grade / Customized Colors Available.

[INQUIRE NOW] — Contact Johnson Tools today for wholesale pricing on our Early entry concrete saw blades and keep your next concrete project crack-free.
