Introduction: The Science and Strength Behind Asphalt Core Drilling
Every durable road begins beneath the surface, in how its asphalt is tested, drilled, and verified. Behind every smooth highway or airport runway lies a process called asphalt core drilling. Engineers extract cylindrical core samples from the asphalt pavement to check its internal strength, density, and composition. These tests are not just formalities; they are the foundation of quality control and durability.
When core drilling is done correctly, it reveals the hidden story of the road. It tells how well the layers bonded, how thick the asphalt layer is, and whether the material can withstand years of traffic and weather.
The process combines science, precision, and craftsmanship to ensure compliance with international standards and the long-term performance of every pavement. That is why tools like JohnsonTools Diamond Core Bits are crucial. They make testing safer, smoother, and far more reliable for engineers who build roads that last.
Beyond simple inspection, asphalt testing provides essential insights into how construction techniques, aggregate quality, and binder composition influence structural behavior over time. Each drilled sample becomes a snapshot of the pavement’s health, allowing professionals to assess compaction levels, moisture infiltration, or early-stage cracking before visible damage occurs. The results not only guide immediate repairs but also shape future mix designs, equipment choices, and project specifications.
Accurate core testing reduces costly rework, improves safety, and extends road longevity. By transforming raw field data into measurable engineering decisions, the practice ensures that every meter of road performs as intended—reliable, resilient, and ready to carry the world forward.
What Is Asphalt Core Drilling and Why Does It Matter?
At its core, asphalt core drilling is the process of removing cylindrical samples from finished asphalt pavement or a concrete structure to test the material properties. The core samples, usually 100 to 200 mm wide, are taken using a core drilling machine fitted with a diamond bit. Each extracted asphalt core provides engineers with critical data on thickness, density, adhesion, and aggregate composition.
These measurements allow laboratories to determine if the pavement meets engineering specifications and to ensure it was compacted to the correct level. Once collected, the samples undergo tests in the laboratory to assess performance, durability, and quality control.
Proper core testing also helps detect issues early, such as weak bonding between layers or moisture infiltration that might shorten road longevity. Without this step, even newly paved asphalt layers can fail under stress. Beyond verifying material integrity, asphalt coring also plays a major role in research and infrastructure optimization. Transportation authorities use it to study how different asphalt binders, aggregates, or layer combinations perform under specific climate or traffic conditions. The results contribute to refining regional standards and improving future pavement design.
In addition, consistent core drilling supports maintenance planning by identifying which road sections require resurfacing versus full-depth reconstruction. It gives engineers a direct view into the life cycle of the asphalt material, revealing patterns of fatigue and oxidation that visual inspection alone cannot detect.
In simple words, core drilling transforms a small hole into powerful insights that guide maintenance, guarantee compliance, and safeguard public safety. For any modern infrastructure project, it is an essential process that ensures the road not only looks strong but truly is.
Common Applications of Asphalt Testing and Core Evaluation
Asphalt testing is the foundation of safe, long-lasting road construction. It helps engineers, contractors, and agencies confirm that every layer of pavement meets the right performance standards.
- It verifies material safety, quality control, and compliance for projects ranging from highways to local pavement maintenance.
- Core testing allows contractors to confirm proper compaction, density, and thickness during construction.
- Laboratories and engineers use material evaluation and core drilling data to detect weaknesses or causes of rutting, cracking, and moisture damage.
- Consistent testing ensures durability, safety, and the long-term performance of every asphalt surface.
Reliable asphalt evaluation prevents early pavement failure and ensures each project delivers the strength and longevity that modern infrastructure demands.
Choosing the Right Core Drilling Machine and Bit Type
Selecting the right core drilling machine and diamond bit is essential for accurately testing asphaltand long-term tool performance. The table below outlines the recommended features based on JohnsonTools’ professional standards.
| Feature | Specification |
|---|---|
| Diameter | 100 mm, 150 mm, 200 mm (custom sizes up to 300 mm) |
| Segment Height | 10–12 mm |
| Connection Thread | 1-1/4” UNC or customized fitting |
| Blade Bonding Type | High-Frequency Welded or Laser Welded |
| Cooling Type | Wet Drilling Recommended |
| Application | Hot Mix Asphalt (HMA), recycled asphalt, road base |
| Machine Compatibility | Handheld corers, road-mounted core drills |
| Diamond Grade | Premium quality matrix for fast, clean penetration in sticky or dense asphalt surfaces |
Choosing high-quality tools is crucial. They provide smoother operation, cleaner cuts, and dependable results for every asphalt core extraction and material evaluation.

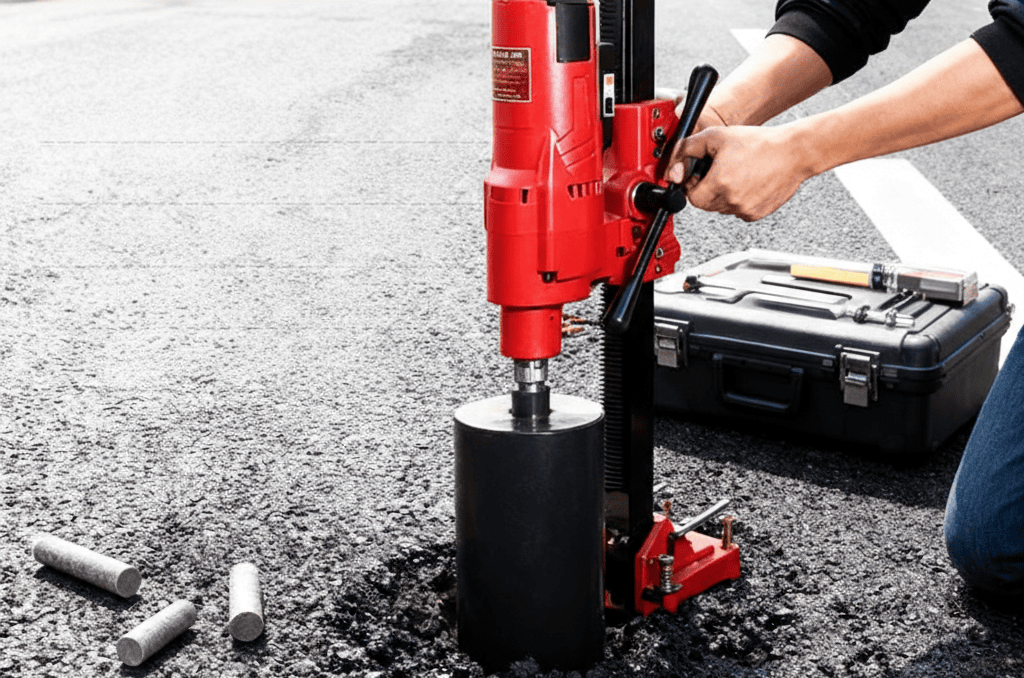

Step-by-Step Core Drilling Process for Asphalt
Basic Workflow for Asphalt Coring
- Mark the drilling site according to the project plan or random sample specifications. Accurate marking ensures representative sampling and prevents rework. Before starting, confirm that the location reflects actual pavement conditions and avoids reinforcement zones or buried utilities.
- Align the drill rig vertically to achieve a precise, perpendicular entry. Correct alignment helps maintain the shape of the core sample and avoids side friction that can damage the bit or distort results.
- Use water for lubrication and dust suppression during drilling. Proper cooling extends the life of the core bit and prevents burning or polishing of the asphalt surface.
- Drill slowly through asphalt layers to control speed and reduce heat generation. Gentle, steady pressure helps preserve the natural bonding between layers and keeps the asphalt layer intact.
- Extract the core sample carefully once the target depth is reached. Remove it with tongs or a lifting device to prevent cracks or fragmentation that may affect testing accuracy.
- Label and store the sample immediately, noting its location, depth, and time of extraction. Secure storage ensures that the material remains uncontaminated before laboratory evaluation.
- Patch the core hole with cold-mix asphalt or sealant to maintain surface safety and restore pavement continuity.
Following this systematic process ensures accurate results, consistent quality control, and reliable data for material evaluation and ongoing pavement performance assessment.
What Laboratory Tests Are Done on Asphalt Cores
Assessing Density, Strength, and Performance?
Once asphalt cores are extracted, they undergo detailed tests in the laboratory to assess density, strength, and durability. Engineers measure thickness and compare it to design specifications to confirm proper layer construction. Density testing may use nuclear or vacuum sealing methods to determine compaction accuracy, while air void content helps predict long-term performance.
Key Asphalt Testing Methods
Typical asphalt testing includes the Marshall stability test, tensile strength ratio (TSR), layer adhesion, moisture resistance, and asphalt binder analysis. Each test provides essential information about the properties and ability of the asphalt materials to withstand load and weather stress.
Standards and Compliance
All testing follows international standards such as ASTM D5361 and AASHTO T166 or T209. Meeting these ensures compliance and consistent quality across all projects. Proper interpretation of test results allows engineers to assess material performance and plan targeted maintenance for lasting longevity.
In short, these laboratory evaluations transform simple core testing into measurable proof of quality control and road durability.
Understanding Core Testing Results and Quality Assurance
Interpreting Asphalt Core Data
After laboratory testing, engineers evaluate each asphalt core to understand its density, bonding, and overall performance. These core testing results reveal how well the asphalt layers have fused, whether air voids are within acceptable limits, and if the pavement meets structural specifications.
Ensuring Long-Term Pavement Quality
The insights gained from asphalt testing guide vital quality control and maintenance decisions. For example, low density or poor adhesion between layers indicates potential early cracking, while proper composition ensures optimal durability and longevity.
Routine evaluation of core samples is crucial for verifying compliance with engineering standards and improving future project outcomes. Each assessment helps ensure that every pavement surface performs safely under traffic, weather, and time. In essence, core testing transforms raw data into confidence that a road will endure.
JohnsonTools Diamond Core Bits: Designed for Performance
Innovation That Drives Precision
When it comes to asphalt coring, tool quality defines project success. JohnsonTools Diamond Core Bits are engineered for precision, stability, and consistent performance. Their wet-use design enables smooth entry and exit, producing clean core samples that maintain accurate material integrity during testing and evaluation.
Key Features for Reliable Coring
Each bit features a premium diamond matrix that delivers fast penetration in both hot-mix and recycled asphalt materials. Segment heights of 10–12 mm and customizable diameters up to 300 mm allow exact matching to project specifications. High-frequency or laser-welded bonds increase durability while reducing heat during drilling.
Why Professionals Choose JohnsonTools?
Contractors and engineers trust JohnsonTools for tools that ensure clean cuts, longer lifespan, and stable control under pressure. Each product supports better quality control, precise extraction, and safer operation. With variety in types, adaptable connections, and OEM customization, JohnsonTools empower teams to meet every standard of compliance and excellence in asphalt testing.
Frequently Asked Questions (FAQs)
Can You Core Through Asphalt?
Yes, you can. Core drilling through asphalt pavement is standard practice for testing, evaluation, and quality control. The key is using a high-quality core drilling machine with a properly bonded diamond bit and applying steady water cooling to keep the surface smooth and the asphalt core intact.
What Is the ASTM Standard for Asphalt Coring?
Most asphalt testing follows ASTM D5361, AASHTO T166, or EN 12697. These standards define how samples are taken, stored, and tested to ensure accuracy and compliance in material evaluation.
What Are the Disadvantages of Core Cutting?
Every core drilling operation leaves a hole that must be patched. If done incorrectly, this may affect surface smoothness or cause weak bonding. However, with proper equipment, controlled process, and post-drilling repair, the disadvantages are minimal.
How Can You Tell If a Core Is Weak?
Weak cores usually show cracks, delamination, or crumbling during extraction or tests in the laboratory. Such results point to insufficient density, poor compaction, or faulty asphalt binder ratio. Regular core testing helps detect these issues early and preserve long-term performance and longevity.
Conclusion: Precision That Powers Pavements
True road strength begins with accurate asphalt testing and ends with trusted tools. Every phase of core drilling i.e., from the extraction of precise core samples to the final laboratory tests, represents a scientific commitment to quality control and performance excellence. Behind each smooth highway, airport runway, and industrial pavement lies the hidden precision of engineers who analyze data, refine materials, and build for endurance.
When executed with skill, asphalt coring becomes more than a construction step; it becomes a benchmark of engineering integrity. The process allows experts to assess density, thickness, and composition, ensuring that each asphalt layer adheres to design specifications and withstands the stresses of time, traffic, and temperature. Without such accuracy, even the best-designed pavement can lose its strength long before its intended lifespan.
That is where JohnsonTools Diamond Core Bits make a measurable difference. Their advanced diamond matrix provides consistent cutting, clean extraction, and minimal surface disruption. Whether drilling through dense asphalt materials or evaluating recycled aggregate mixes, these tools empower professionals to achieve exact results under demanding field conditions.
By combining mechanical precision with material science, they enable safer, faster, and more efficient core testing across diverse projects. Every successful evaluation reflects collaboration between technology, expertise, and responsibility. The insights drawn from each asphalt core directly shape construction standards, maintenance schedules, and public safety outcomes. Through reliable testing and disciplined material evaluation, the roadways of today become the durable foundations of tomorrow.
With JohnsonTools’ innovation at the forefront, engineers can operate with confidence, maintain compliance, and deliver the kind of performance that defines world-class infrastructure. In the end, true pavement longevity is not just built, it’s precisely drilled, tested, and proven to last.
